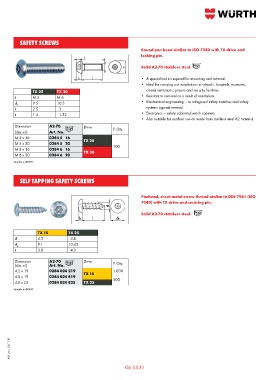

Page 593 - Wurth Total Catalogue

SAFETY SCREWS

Round pan head similar to ISO 7380 with TX drive and
locking pin.

Solid A2-70 stainless steel.

• A special tool is required for mounting and removal.
• Ideal for carrying out installations in schools, hospitals, museums,
TX 25 TX 30 closed institutions, prisons and security facilities.
t M 5 M 6 • Resistant to removal as a result of vandalism.
d 1 9.5 10.5 • Mechanical engineering – to safeguard safety switches and safety
k 2.5 3 systems against removal.
t 1.4 1.52 • Electronics — safety cabinets/switch cabinets.
• Also suitable for outdoor use as made from stainless steel A2 material.
Dimension A2-70 Drive P. Qty.
(dia. x l) Art. No.
M 5 x 16 0284 5 16
M 5 x 20 0284 5 20 TX 25 100
M 6 x 16 0284 6 16 TX 30
M 6 x 20 0284 6 20
Storable in ®ORSY

SELF TAPPING SAFETY SCREWS

Panhead, sheet metal screw thread similar to DIN 7981 (ISO
7049) with TX drive and securing pin.

Solid A2-70 stainless steel.

TX 15 TX 25
d 4.2 4.8
d 9.1 10.45
k
k 3.8 4.3

Dimension A2-70 Drive P. Qty.
(dia. x l) Art. No.
4.2 x 19 0284 024 219 TX 15 1,000
4.8 x 19 0284 024 819 500
4.8 x 25 0284 024 825 TX 25

Storable in ®ORSY
