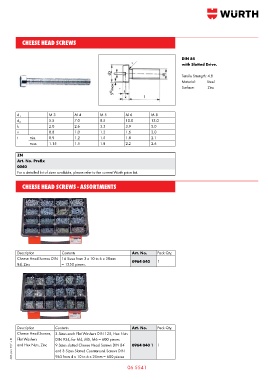

Page 594 - Wurth Total Catalogue
P. 594
cheese head screws
DIN 84
with Slotted Drive.
Tensile Strength: 4.8
Material: Steel
Surface: Zinc
d ₁ M 3 M 4 M 5 M 6 M 8
d ₂ 5.5 7.0 8.5 10.0 13.0
k 2.0 2.6 3.3 3.9 5.0
n 0.8 1.0 1.2 1.6 2.0
t min. 0.9 1.2 1.5 1.8 2.1
max. 1.15 1.5 1.8 2.2 2.6
ZN
Art. No. Prefix
0040
For a detailed list of sizes available, please refer to the current Wurth price list.
cheese head screws - assortments
Description Contents Art. No. Pack Qty.
Cheese Head Screws DIN 16 Sizes from 3 x 10 to 6 x 30mm 0964 040 1
84, Zinc = 1350 pieces.
Description Contents Art. No. Pack Qty.
Cheese Head Screws, 3 Sizes each Flat Washers DIN 125, Hex Nuts
Flat Washers
DIN 934; for M4, M5, M6 = 600 pieces.
AUS. pub. 01/14 © and Hex Nuts, Zinc 9 Sizes slotted Cheese Head Screws DIN 84 0964 040 1 1
and 3 Sizes Slotted Countersunk Screws DIN
963 from 4 x 10 to 6 x 25mm = 600 pieces
06 5541
