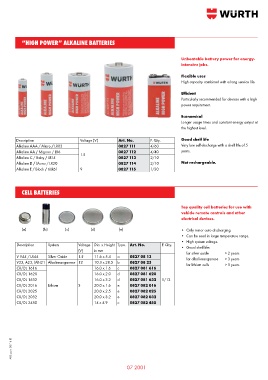

Page 650 - Wurth Total Catalogue

“HIGH POWER” ALKALINE BATTERIES

Unbeatable battery power for energy-
intensive jobs.

Flexible uses
High capacity combined with a long service life.

Efficient
Particularly recommended for devices with a high
power requirement.

Economical
Longer usage times and constant energy output at
the highest level.

Description Voltage (V) Art. No. P. Qty. Good shelf life
Alkaline AAA / Micro / LR03 0827 111 4/60 Very low self-discharge with a shelf life of 5
Alkaline AA / Mignon / LR6 0827 112 4/40 years.
Alkaline C / Baby / LR14 1.5 0827 113 2/10
Alkaline D / Mono / LR20 0827 114 2/10 Not rechargeable.
Alkaline E / Block / 6LR61 9 0827 115 1/20

CELL BATTERIES

Top quality cell batteries for use with
vehicle remote controls and other
electrical devices.

(a) (b) (c) (d) (e) • Only minor auto discharging.
• Can be used in large temperature range.
• High system voltage.
Description System Voltage Dia x Height Type. Art. No. P. Qty. • Good shelf life:
(V) in mm for silver oxide > 2 years
V V44 / LR44 Silver Oxide 1.5 11.6 x 5.4 a 0827 08 13 for alkali-manganese > 3 years
V23, A23, MN21 Alkali-manganese 12 10.3 x 28.5 b 0827 08 23 for lithium cells > 5 years
CR/DL 1616 16.0 x 1.6 c 0827 081 616
CR/DL 1620 16.0 x 2.0 d 0827 081 620
CR/DL 1632 16.0 x 3.2 d 0827 081 632 1/12
CR/DL 2016 Lithium 3 20.0 x 1.6 e 0827 082 016
CR/DL 2025 20.0 x 2.5 e 0827 082 025
CR/DL 2032 20.0 x 3.2 e 0827 082 032
CR/DL 2450 14 x 4.9 c 0827 082 450

AUS. pub. 05/16 ©

07 2001
