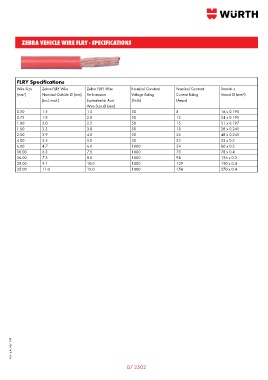

Page 652 - Wurth Total Catalogue

ZEBRA VEHICLE WIRE FLRY - SPECIFICATIONS

FLRY Specifications
Wire Size Zebra FLRY Wire Zebra FLRY Wire Nominal Constant Nominal Constant Strands x
(mm²) Nominal Outside Ø (mm) Performance Voltage Rating Current Rating Strand Ø (mm²)
(incl. insul.) Equivalent in Aust. (Volts) (Amps)
Wire Size Ø (mm)
0.50 1.5 1.5 50 8 16 x 0.195
0.75 1.8 2.0 50 12 24 x 0.195
1.00 2.0 2.5 50 15 31 x 0.197
1.50 2.3 3.0 50 18 28 x 0.245
2.50 2.9 4.0 50 25 48 x 0.245
4.00 3.5 5.0 50 32 53 x 0.3
6.00 4.7 6.0 1000 54 80 x 0.3
10.00 6.3 7.5 1000 73 78 x 0.4
16.00 7.3 8.0 1000 98 126 x 0.3
25.00 9.1 10.0 1000 129 190 x 0.4
35.00 11.0 12.0 1000 158 270 x 0.4
