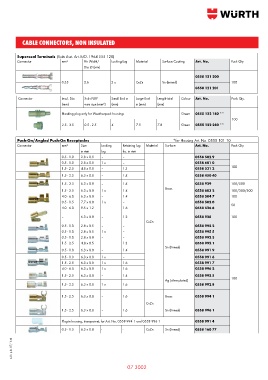

Page 657 - Wurth Total Catalogue

CABLE CONNECTORS, NON INSULATED

Superseal Terminals (Suits Asst. Art. NO. 1964 555 120)
Connector mm² Pin Width/ Locking Lug Material Surface Coating Art. No. Pack Qty.
Dia Ø (mm)
0558 121 200
0.35 2.6 2 x CuZn Sn (tinned) 100
0558 121 201

Connector Insul. Dia Suits FLRY Small End ø Large End Length-total Colour Art. No. Pack Qty.
(mm) wire size (mm²) (mm) ø (mm) (mm)

Blanking plug only for Weatherpack housings Green 0555 122 180 **
100
2.5 - 3.5 0.5 - 2.5 4 7.5 7.8 Green 0555 122 280 **

Push-On/Angled Push-On Receptacles *for Housing Art. No. 0555 101 10
Connector mm² Size Locking Retaining lug Material Surface Art. No. Pack Qty.
in mm lug fia. in mm
0.5 - 1.0 2.8 x 0.5 – – 0558 502 9
0.5 - 1.0 2.8 x 0.5 1 x – 0558 601 0
1.5 - 2.5 4.8 x 0.8 – 1.3 0558 531 2 100
1.5 - 2.5 6.3 x 0.8 – 1.4 0558 450 40
1.5 - 2.5 6.3 x 0.8 – 1.4 0558 929 100/500
Brass
1.5 - 2.5 6.3 x 0.8 1 x 1.4 0558 603 2 100/300/500
4.0 - 6.0 6.3 x 0.8 – 1.4 0558 504 7 100
0.5 - 1.5 7.7 x 0.8 1 x – 0558 502 0
4.0 - 6.0 9.5 x 1.2 – 1.6 0558 526 6 50
– 6.3 x 0.8 – 1.2 0558 928 100
CuZn
0.5 - 1.0 2.8 x 0.5 – – 0558 992 2
0.5 - 1.0 2.8 x 0.5 1 x – 0558 995 5
0.5 - 1.0 2.8 x 0.8 – – 0558 992 3
1.5 - 2.5 4.8 x 0.5 – 1.3 0558 992 1
Sn (tinned)
0.5 - 1.0 6.3 x 0.8 – 1.4 0558 991 9
0.5 - 1.0 6.3 x 0.8 1 x – 0558 991 6
1.5 - 2.5 6.3 x 0.8 1 x 1.6 0558 991 7
4.0 - 6.0 6.3 x 0.8 1 x 1.6 0558 996 2
1.5 - 2.5 6.3 x 0.8 – 1.4 0558 992 5
Ag (silver-plated) 100
1.5 - 2.5 6.3 x 0.8 1 x 1.6 0558 992 8

1.5 - 2.5 6.3 x 0.8 – 1.6 Brass 0558 994 1
CuZn
1.5 - 2.5 6.3 x 0.8 – 1.6 Sn (tinned) 0558 996 1

Plug-in housing, transparent, for Art. No. 0558 994 1 and 0558 996 1 0558 991 4
0.5 - 1.5 6.3 x 0.8 - - CuZn Sn (tinned) 0558 160 77
