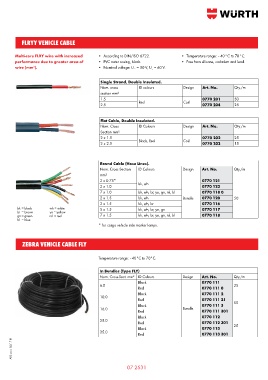

Page 655 - Wurth Total Catalogue

FLRYY VEHICLE CABLE

Multi-core FLRY wire with increased • According to DIN/ISO 6722. • Temperature range: –40°C to 70°C.
performance due to greater area of • PVC outer casing, black. • Free from silicone, cadmium and lead.
wire (mm ). • Nominal voltage: U = 50 V, U = 60 V.
2
~ –
Single Strand, Double Insulated.
Nom. cross ID colours Design Art. No. Qty./m
section mm²
1.5 0770 201 50
2.5 Red Coil 0770 204 25

Flat Cable, Double Insulated.
Nom. Cross ID Colours Design Art. No. Qty./m
Section mm²
2 x 1.5 0770 202 25
2 x 2.5 Black, Red Coil 0770 203 15

Round Cable (Hose Lines).
Nom. Cross Section ID Colours Design Art. No. Qty./m
mm²
2 x 0.75* 0770 121
2 x 1.0 bk, wh 0770 122
7 x 1.0 bk, wh, br, ye, gn, rd, bl 0770 118 0
2 x 1.5 bk, wh Bundle 0770 120 50
3 x 1.5 bk, wh, br 0770 116
bk = black wh = white 5 x 1.5 bk, wh, br, ye, gn 0770 117
br = brown ye = yellow
gn = green rd = red 7 x 1.5 bk, wh, br, ye, gn, rd, bl 0770 118
bl = blue
* for cargo vehicle side marker lamps.

ZEBRA VEHICLE CABLE FLY

Temperature range: –40°C to 70°C.

In Bundles (Type FLY)
Nom. Cross-Sect. mm² ID Colours Design Art. No. Qty./m
Black 0770 111
6.0 25
Red 0770 111 0
Black 0770 111 2
10.0
Red 0770 111 21
Black 0770 111 3 50
16.0 Bundle
Red 0770 111 301
Black 0770 112
25.0
Red 0770 112 301
Black 0770 113 25
35.0
Red 0770 113 301
