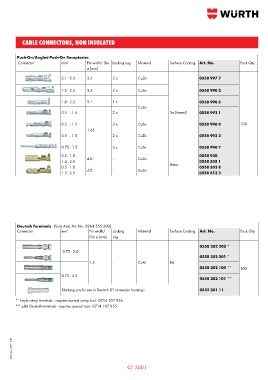

Page 656 - Wurth Total Catalogue

CABLE CONNECTORS, NON INSULATED

Push-On/Angled Push-On Receptacles
Connector mm² Pin width/ Dia Locking Lug Material Surface Coating Art. No. Pack Qty.
ø (mm)

2.1 - 5.3 3.5 2 x CuZn 0558 997 7

1.5 - 2.5 3.5 2 x CuSn 0558 990 2

1.0 - 2.5 2.1 1 x 0558 990 5
CuZn
0.5 - 1.5 2 x Sn (tinned) 0558 993 1

0.5 - 1.5 3 x CuSn 0558 990 8 100
1.65
0.5 - 1.5 2 x CuZn 0558 993 2

0.75 - 1.5 3 x CuSn 0558 990 7
0.5 - 1.0 0558 930
1.5 - 2.5 4.0 - CuZn Brass 0558 505 1
0.5 - 1.0 0558 503 8
1.5 - 2.5 4.0 - CuZn 0558 513 3

Deutsch Terminals (Suits Asst. Art. No. 0964 555 200)
Connector mm 2 Pin width/ Locking Material Surface Coating Art. No. Pack Qty.
Dia ø (mm) Lug
0558 202 200 *
0.75 - 2.0
0558 202 201 *
1.5 - CuAl Ni
0558 202 100 ** 100

0.75 - 2.5
0558 202 101 **

Blanking pin for use in Deutsch DT connector housings 0555 201 11
* f-style crimp terminals - requires normal crimp tool - 0714 107 956.
** solid Deutsch terminals - requires special tool - 0714 107 955.
