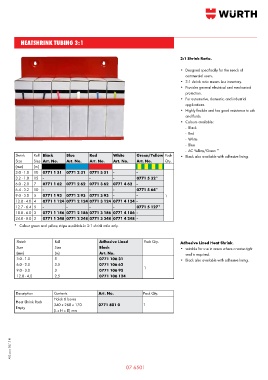

Page 683 - Wurth Total Catalogue

heatshrink tubing 3:1

3:1 Shrink Ratio.

• Designed specifically for the needs of
commercial users.
• 3:1 shrink ratio means less inventory.
• Provides general electrical and mechanical
protection.
• For automotive, domestic, and industrial
applications.
• Highly flexible and has good resistance to oils
and fluids.
• Colours available:
- Black
- Red
- White
- Blue
- AC Yellow/Green *
Shrink Roll Black Blue Red White Green/Yellow Pack • Black also available with adhesive lining.
Size Size Art. No. Art. No. Art. No. Art. No. Art. No. Qty.
(mm) (m)
3.0 - 1.0 10 0771 1 31 0771 2 31 0771 3 31 - -
3.2 - 1.8 15 - - - 0771 5 32*
6.0 - 2.0 7 0771 1 62 0771 2 62 0771 3 62 0771 4 62 -
6.4 - 3.2 10 - - - 0771 5 64*
9.0 - 3.0 5 0771 1 93 0771 2 93 0771 3 93 - - 1
12.0 - 4.0 4 0771 1 124 0771 2 124 0771 3 124 0771 4 124 -
12.7 - 6.4 5 - - - - 0771 5 127*
18.0 - 6.0 3 0771 1 186 0771 2 186 0771 3 186 0771 4 186 -
24.0 - 8.0 3 0771 1 248 0771 2 248 0771 3 248 0771 4 248 -
* Colour green and yellow stripe available in 2:1 shrink ratio only.

Shrink Roll Adhesive Lined Pack Qty. Adhesive Lined Heat Shrink.
Size Size Black • suitable for use in areas where a water-tight
(mm) (m) Art. No. seal is required.
3.0 - 1.0 5 0771 106 31 • Black also available with adhesive lining.
6.0 - 2.0 3.5 0771 106 62
9.0 - 3.0 3 0771 106 93 1
12.0 - 4.0 2.5 0771 106 124

Description Contents Art. No. Pack Qty.
Holds 6 boxes
Heat Shrink Rack 340 x 260 x 170 0771 801 0 1
Empty
(L x H x D) mm

AUS. pub. 02/13 ©

07 6501
