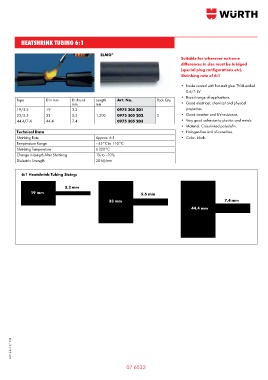

Page 686 - Wurth Total Catalogue

HEATSHRINK TUBING 6:1

ELMO ®
Suitable for wherever extreme
differences in size must be bridged
(special plug configurations etc).
Shrinking rate of 6:1

• Inside coated with hot-melt glue. Thick-walled
0.6/1 kV
• Broad range of applications.
Type D in mm D shrunk Length Art. No. Pack Qty.
mm mm • Good electrical, chemical and physical
19/3.2 19 3.2 0975 305 201 properties.
33/5.5 33 5.5 1,200 0975 305 202 3 • Good weather and UV-resistance.
44.4/7.4 44.4 7.4 0975 305 203 • Very good adhesion to plastics and metals.
• Material: Cross-linked polyolefin.
Technical Data • Halogen-free and silicone-free.
Shrinking Rate Approx. 6 :1 • Color: black.
Temperature Range –55°C to 110°C
Shrinking Temperature ≥ 120°C
Change in Length After Shrinking 1% to –10 %
Dielectric Strength 20 kV/mm

6:1 Heatshrink Tubing Sizing:

3.2 mm
19 mm 5.5 mm

33 mm 7.4 mm
44.4 mm
