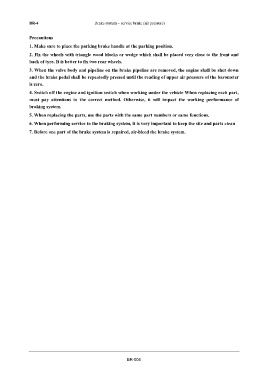

BR-4 Brake system – service brake (air pressure)

Precautions
1. Make sure to place the parking brake handle at the parking position.
2. Fix the wheels with triangle wood blocks or wedge which shall be placed very close to the front and
back of tyre. It is better to fix two rear wheels.
3. When the valve body and pipeline on the brake pipeline are removed, the engine shall be shut down
and the brake pedal shall be repeatedly pressed until the reading of upper air pressure of the barometer
is zero.

4. Switch off the engine and ignition switch when working under the vehicle When replacing each part,
must pay attentions to the correct method. Otherwise, it will impact the working performance of
braking system.

5. When replacing the parts, use the parts with the same part numbers or same functions.
6. When performing service to the braking system, it is very important to keep the site and parts clean

7. Before one part of the brake system is repaired, air-bleed the brake system.

BR-004
