BR-8 Brake system – service brake (air pressure)

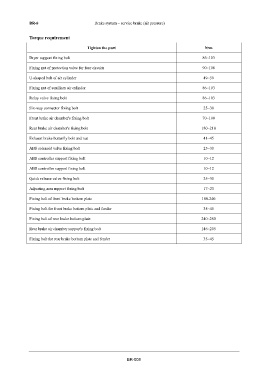

Torque requirement
Tighten the part N•m

Dryer support fixing bolt 86~103
Fixing nut of protection valve for four circuits 90~108

U-shaped bolt of air cylinder 49~59

Fixing nut of auxiliary air cylinder 86~103

Relay valve fixing bolt 86~103

Six-way connector fixing bolt 25~30
Front brake air chamber's fixing bolt 70~100

Rear brake air chamber's fixing bolt 180~210

Exhaust brake butterfly bolt and nut 41~45

ABS solenoid valve fixing bolt 25~30

ABS controller support fixing bolt 10~12
ABS controller support fixing bolt 10~12

Quick release valve fixing bolt 25~30

Adjusting arm support fixing bolt 17~23

Fixing bolt of front brake bottom plate 180-240
Fixing bolt for front brake bottom plate and fender 35~45

Fixing bolt of rear brake bottom plate 240~280

Rear brake air chamber support's fixing bolt 146~205

Fixing bolt for rear brake bottom plate and fender 35~45

BR-008
