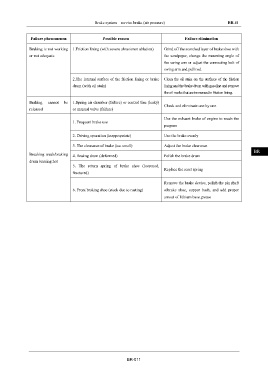

Brake system – service brake (air pressure) BR-11

IN
Failure phenomenon Possible reason Failure elimination

Braking is not working 1.Friction lining (with severe abrasionor ablation) Grind off the scorched layer of brake shoe with
DI
or not adequate the sandpaper, change the mounting angle of

the swing arm or adjust the connecting bolt of
swing arm and pull rod. EG

2.The internal surface of the friction lining or brake Clean the oil stain on the surfaces of the friction
drum (with oil stain) lining and the brake drum with gasoline and remove TR
the oil marks that are immersed in friction lining.

Braking cannot be 1.Spring air chamber (failure) or control line (leaky) AX
Check and eliminate one by one
released or manual valve (failure)
Use the exhaust brake of engine to reach the FR
1. Frequent brake use
purpose

2. Driving operation (inappropriate) Use the brake evenly ST

3. The clearance of brake (too small) Adjust the brake clearance
BR
Breaking weak/braking 4. Brakng drum (deformed) Polish the brake drum

drum burning hot
5. The return spring of brake shoe (loosened,
Replace the reset spring BW
fractured)

Remove the brake device, polish the pin shaft
EL
6. Front braking shoe (stuck due to rusting) ofbrake shoe, copper bush, and add proper

amout of lithium base grease

BR-011
