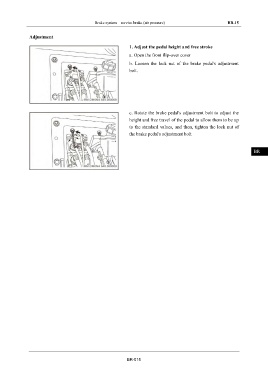

Brake system – service brake (air pressure) BR-15
Adjustment IN
1. Adjust the pedal height and free stroke
DI
a. Open the front flip-over cover
b. Loosen the lock nut of the brake pedal's adjustment
EG
bolt.
TR
AX
c. Rotate the brake pedal's adjustment bolt to adjust the
FR
height and free travel of the pedal to allow them to be up
to the standard values, and then, tighten the lock nut of
the brake pedal's adjustment bolt. ST
BR
BW
EL
BR-015
