Brake system – service brake (air pressure) BR-19

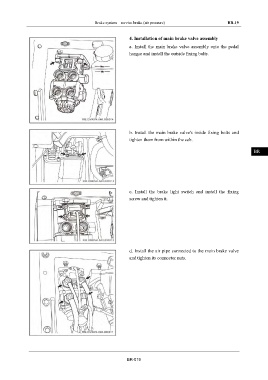

4. Installation of main brake valve assembly IN
a. Install the main brake valve assembly onto the pedal
DI
hanger and install the outside fixing bolts.
EG
TR
AX
FR
b. Install the main brake valve's inside fixing bolts and
ST
tighten them from within the cab.
BR
BW
EL
c. Install the brake light switch and install the fixing
screw and tighten it.
d. Install the air pipe connected to the main brake valve
and tighten its connector nuts.
BR-019
