Brake system – service brake (air pressure) BR-21
Dryer IN

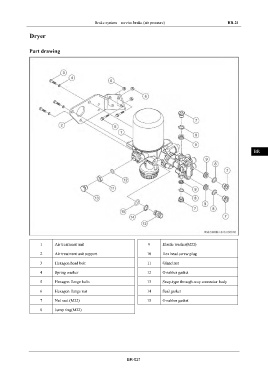

Part drawing DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Air treatment unit 9 Elastic washer(M22)
2 Air treatment unit support 10 Hex head screw plug
3 Hexagon head bolt 11 Gland nut
4 Spring washer 12 O rubber gasket
5 Hexagon flange bolts 13 Snap-type through-way connector body
6 Hexagon flange nut 14 Seal gasket
7 Nut seat (M22) 15 O rubber gasket
8 Jump ring(M22)
