Brake system – service brake (air pressure) BR-25

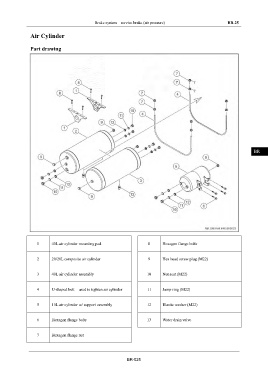

Air Cylinder IN

Part drawing
DI

EG

TR

AX

FR

ST

BR

BW

EL

1 40L air cylinder mounting pad 8 Hexagon flange bolts

2 20/20L composite air cylinder 9 Hex head screw plug (M22)

3 40L air cylinder assembly 10 Nut seat (M22)

4 U-shaped bolt – used to tighten air cylinder 11 Jump ring (M22)

5 10L air cylinder w/ support assembly 12 Elastic washer (M22)

6 Hexagon flange bolts 13 Water drain valve

7 Hexagon flange nut

BR-025
