BR-22 Brake system – service brake (air pressure)

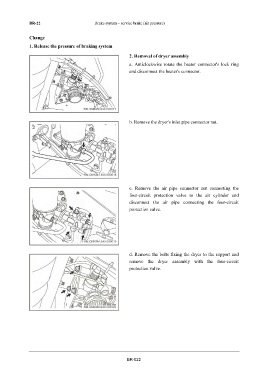

Change
1. Release the pressure of braking system
2. Removal of dryer assembly

a. Anticlockwise rotate the heater connector's lock ring
and disconnect the heater's connector.

b. Remove the dryer's inlet pipe connector nut.

c. Remove the air pipe connector nut connecting the
four-circuit protection valve to the air cylinder and
disconnect the air pipe connecting the four-circuit
protection valve.

d. Remove the bolts fixing the dryer to the support and
remove the dryer assembly with the four-circuit
protection valve.
