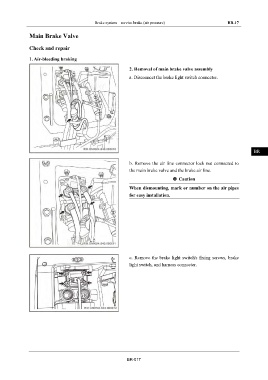

Brake system – service brake (air pressure) BR-17

Main Brake Valve IN

Check and repair
DI
1. Air-bleeding braking

circuit 2. Removal of main brake valve assembly EG

a. Disconnect the brake light switch connector.
TR

AX

FR

ST

BR

b. Remove the air line connector lock nut connected to
BW
the main brake valve and the brake air line.
Caution
When dismounting, mark or number on the air pipes EL
for easy installation.

c. Remove the brake light switch's fixing screws, brake
light switch, and harness connector.

BR-017
