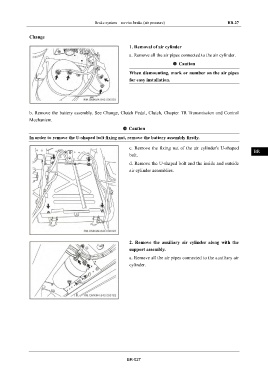

Brake system – service brake (air pressure) BR-27

Change IN

1. Removal of air cylinder
DI
a. Remove all the air pipes connected to the air cylinder.

Caution
EG
When dismounting, mark or number on the air pipes
for easy installation.
TR

AX

b. Remove the battery assembly. See Change, Clutch Pedal, Clutch, Chapter TR Transmission and Control
FR
Mechanism.
Caution
In order to remove the U-shaped bolt fixing nut, remove the battery assembly firstly. ST

c. Remove the fixing nut of the air cylinder's U-shaped
BR
bolt.

d. Remove the U-shaped bolt and the inside and outside
BW
air cylinder assemblies.

EL

2. Remove the auxiliary air cylinder along with the
support assembly.

a. Remove all the air pipes connected to the auxiliary air

cylinder.

BR-027
