BR-32 Brake system – service brake (air pressure)

Relay Valve

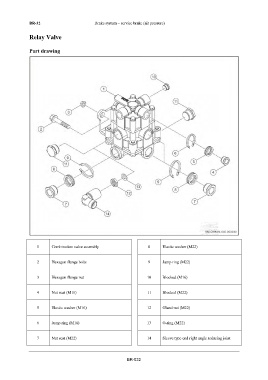

Part drawing

1 Combination valve assembly 8 Elastic washer (M22)

2 Hexagon flange bolts 9 Jump ring (M22)

3 Hexagon flange nut 10 Blocked (M16)

4 Nut seat (M16) 11 Blocked (M22)

5 Elastic washer (M16) 12 Gland nut (M22)

6 Jump ring (M16) 13 O-ring (M22)

7 Nut seat (M22) 14 Sleeve type end right angle reducing joint

BR-032
