Brake system – service brake (air pressure) BR-35
Multi-Way Connector Body IN

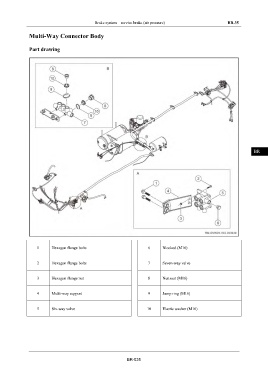

Part drawing
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Hexagon flange bolts 6 Blocked (M16)
2 Hexagon flange bolts 7 Seven-way valve
3 Hexagon flange nut 8 Nut seat (M16)
4 Multi-way support 9 Jump ring (M16)
5 Six-way valve 10 Elastic washer (M16)
BR-035
