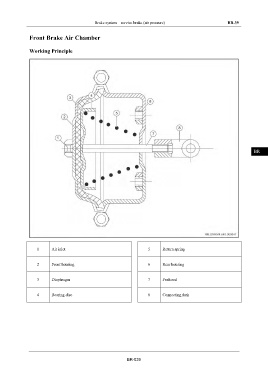

Brake system – service brake (air pressure) BR-39
Front Brake Air Chamber IN
Working Principle DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Air inlet 5 Return spring
2 Front housing 6 Rear housing
3 Diaphragm 7 Push rod
4 Bearing disc 8 Connecting fork
BR-039
