BR-38 Brake system – service brake (air pressure)

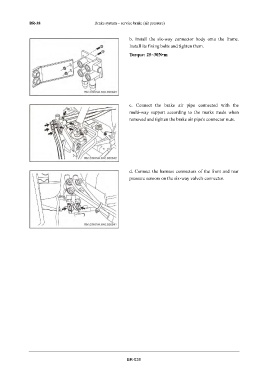

b. Install the six-way connector body onto the frame.
Install its fixing bolts and tighten them.
Torque: 25~30N•m

c. Connect the brake air pipe connected with the
multi-way support according to the marks made when
removed and tighten the brake air pipe's connector nuts.

d. Connect the harness connectors of the front and rear
pressure sensors on the six-way valve's connector.

BR-038
