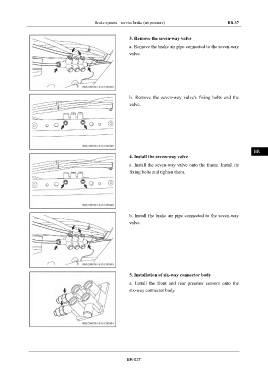

P. 1169
Brake system – service brake (air pressure) BR-37
3. Remove the seven-way valve IN
a. Remove the brake air pipe connected to the seven-way
DI
valve.
EG
TR
b. Remove the seven-way valve's fixing bolts and the
AX
valve.
FR
ST
BR
4. Install the seven-way valve
a. Install the seven-way valve onto the frame. Install its
BW
fixing bolts and tighten them.
EL
b. Install the brake air pipe connected to the seven-way
valve.
5. Installation of six-way connector body
a. Install the front and rear pressure sensors onto the
six-way connector body.
BR-037
