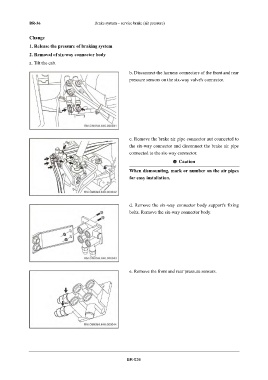

BR-36 Brake system – service brake (air pressure)

Change
1. Release the pressure of braking system
2. Removal of six-way connector body

a. Tilt the cab.

b. Disconnect the harness connectors of the front and rear
pressure sensors on the six-way valve's connector.

c. Remove the brake air pipe connector nut connected to
the six-way connector and disconnect the brake air pipe
connected to the six-way connector.
Caution
When dismounting, mark or number on the air pipes
for easy installation.

d. Remove the six-way connector body support's fixing
bolts. Remove the six-way connector body.

e. Remove the front and rear pressure sensors.

BR-036
