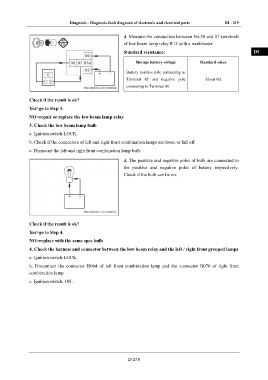

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 219

IN
d. Measure the conduction between No.30 and 87 terminals
of low beam lamp relay R12 with a multimeter
Standard resistance: DI

Storage battery voltage Standard value
EG
Battery positive pole connecting to

Terminal 85 and negative pole About 0Ω
TR
connecting to Terminal 86

Check if the result is ok? AX
Yes>go to Step 3.
NO>repair or replace the low beam lamp relay FR

3. Check the low beam lamp bulb
a. Ignition switch:LOCK. ST

b. Check if the connectors of left and right front combination lamps are loose or fall off
c. Dismount the left and right front combination lamp bulb BR

d. The positive and negative poles of bulb are connected to
the positive and negative poles of battery respectively. BW
Check if the bulb can be on.

EL

Check if the result is ok?

Yes>go to Step 4.

NO>replace with the same spec bulb

4. Check the harness and connector between the low beam relay and the left / right front grouped lamps

a. Ignition switch:LOCK.

b. Disconnect the connector B004 of left front combination lamp and the connector B070 of right front

combination lamp

c. Ignition switch: ON.

DI-219
