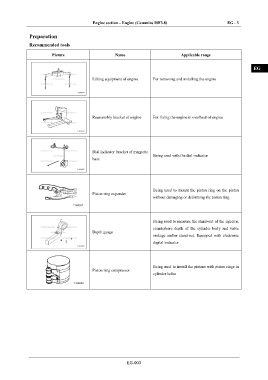

Engine section – Engine (Cummins ISF3.8) EG - 3

Preparation IN

Recommended tools
DI
Picture Name Applicable range

EG

Lifting equipment of engine For removing and installing the engine
TR

AX

Reassembly bracket of engine For fixing the engine in overhaul of engine FR

ST

Dial indicator bracket of magnetic BR
Being used with the dial indicator
base
BW

EL
Being used to mount the piston ring on the piston
Piston ring expander
without damaging or deforming the piston ring

Being used to measure the stand-out of the injector,

counterbore depth of the cylinder body and valve
Depth gauge
sinkage and/or stand-out. Equipped with electronic
digital indicator

Being used to install the pistons with piston rings in
Piston ring compressor
cylinder holes

EG-003
