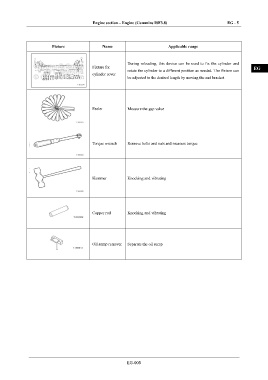

Engine section – Engine (Cummins ISF3.8) EG - 5
IN
Picture Name Applicable range
DI
During reloading, this device can be used to fix the cylinder and
Fixture for EG
rotate the cylinder to a different position as needed. The fixture can
cylinder cover
be adjusted to the desired length by moving the end bracket
TR
AX
Feeler Measure the gap value
FR
ST
Torque wrench Remove bolts and nuts and measure torque
BR
BW
Hammer Knocking and vibrating
EL
Copper rod Knocking and vibrating
Oil sump remover Separate the oil sump
EG-005
