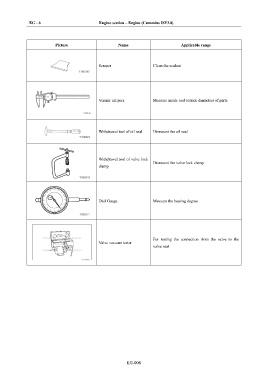

EG - 6 Engine section – Engine (Cummins ISF3.8)

Picture Name Applicable range

Scraper Clean the sealant

Vernier calipers Measure inside and outside diameters of parts

Withdrawal tool of oil seal Dismount the oil seal

Withdrawal tool of valve lock
Dismount the valve lock clamp
clamp

Dial Gauge Measure the beating degree

For testing the connection from the valve to the
Valve vacuum tester
valve seat

EG-006
