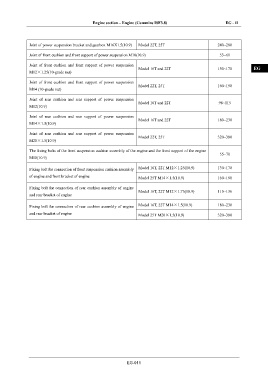

Engine section – Engine (Cummins ISF3.8) EG - 11

IN

Joint of power suspension bracket and gearbox M16X1.5(10.9) Model 22T, 25T 240~280
DI
Joint of front cushion and front support of power suspension M10(10.9) 53~61

Joint of front cushion and front support of power suspension
Model 16T and 22T 130~170 EG
M12×1.25(10-grade nut)

Joint of front cushion and front support of power suspension
Model 22T, 25T 160~190 TR
M14 (10-grade nut)

Joint of rear cushion and rear support of power suspension
Model 16T and 22T 98~115 AX
M12(10.9)

Joint of rear cushion and rear support of power suspension FR
Model 16T and 22T 180~230
M14×1.5(10.9)

Joint of rear cushion and rear support of power suspension ST
Model 22T, 25T 320~380
M20×1.5(10.9)

The fixing bolts of the front suspension cushion assembly of the engine and the front support of the engine BR
55~70
M10(10.9)

Model 16T, 22T M12×1.25(10.9) 130~170 BW
Fixing bolt for connection of front suspension cushion assembly
of engine and front bracket of engine
Model 25T M14×1.5(10.9) 160~190
EL
Fixing bolt for connection of rear cushion assembly of engine
Model 16T, 22T M12×1.75(10.9) 115~136
and rear bracket of engine

Fixing bolt for connection of rear cushion assembly of engine Model 16T, 22T M14×1.5(10.9) 180~230

and rear bracket of engine Model 25T M20×1.5(10.9) 320~380

EG-011
