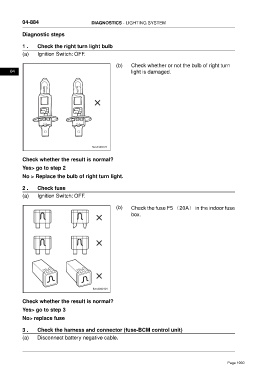

04-884 DIAGNOSTICS - LIGHTING SYSTEM
Diagnostic steps
1 . Check the right turn light bulb
(a) Ignition Switch: OFF.
(b) Check whether or not the bulb of right turn
04 light is damaged.
Check whether the result is normal?
Yes> go to step 2
No > Replace the bulb of right turn light.
2 . Check fuse
(a) Ignition Switch: OFF.
(b) Check the fuse F5 （20A） in the indoor fuse
box.
Check whether the result is normal?
Yes> go to step 3
No> replace fuse
3 . Check the harness and connector (fuse-BCM control unit)
(a) Disconnect battery negative cable.
