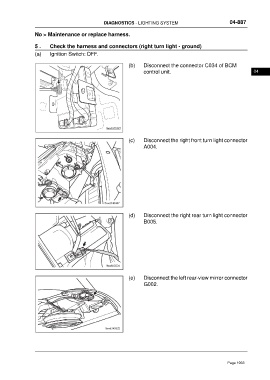

DIAGNOSTICS - LIGHTING SYSTEM 04-887
No > Maintenance or replace harness.
5 . Check the harness and connectors (right turn light - ground)
(a) Ignition Switch: OFF.
(b) Disconnect the connector C034 of BCM
control unit. 04
ftwxd041027
(c) Disconnect the right front turn light connector
A004.
(d) Disconnect the right rear turn light connector
B005.
(e) Disconnect the left rear-view mirror connector
G002.
