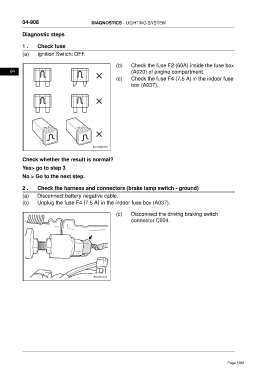

04-908 DIAGNOSTICS - LIGHTING SYSTEM

Diagnostic steps

1 . Check fuse

(a) Ignition Switch: OFF.

(b) Check the fuse F2 (60A) inside the fuse box
04 (A020) of engine compartment.
(c) Check the fuse F4 (7.5 A) in the indoor fuse
box (A037).

Check whether the result is normal?

Yes> go to step 3
No > Go to the next step.

2 . Check the harness and connectors (brake lamp switch - ground)
(a) Disconnect battery negative cable.
(b) Unplug the fuse F4 (7.5 A) in the indoor fuse box (A037).

(c) Disconnect the driving braking switch
connector C004.
