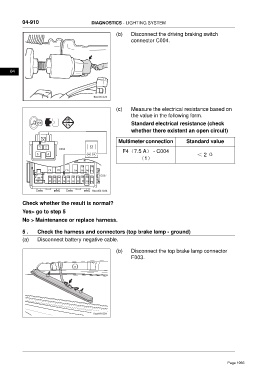

04-910 DIAGNOSTICS - LIGHTING SYSTEM
(b) Disconnect the driving braking switch
connector C004.
04
(c) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)
Multimeter connection Standard value
1 2 C004
3 4 F4（7.5 A） - C004
F37 10A ＜ 2 Ω
F36 15A F19 F21 F18 F20 F22 F23 R07 86 （1）
20A 25A 5A
F11 F12 F13 F14 F15 F16 F17
ALT C037
B65 15A 10A 15A 7.5A 20A 20A 7.5A 20A 10A 5A
B+ F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
ftwxd041034
Check whether the result is normal?
Yes> go to step 5
No > Maintenance or replace harness.
5 . Check the harness and connectors (top brake lamp - ground)
(a) Disconnect battery negative cable.
(b) Disconnect the top brake lamp connector
F003.
ftwx641004
