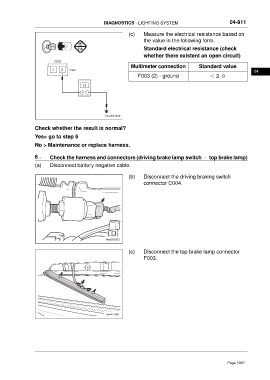

DIAGNOSTICS - LIGHTING SYSTEM                            04-911

                                                           (c)    Measure the electrical resistance based on
                                                                  the value in the following form.
                                                                  Standard electrical resistance (check
                                                                  whether there existent an open circuit)

                                                            Multimeter connection          Standard value
                                 F003                                                                                04
                                                                F003 (2) - ground               ＜ 2 Ω









                                                 ftwxd041409


                 Check whether the result is normal?
                 Yes> go to step 6
                 No > Maintenance or replace harness.


                 6 .    Check the harness and connectors (driving brake lamp switch – top brake lamp)
                 (a)    Disconnect battery negative cable.

                                                           (b)    Disconnect the driving braking switch
                                                                  connector C004.

















                                                           (c)    Disconnect the top brake lamp connector
                                                                  F003.














                                                 ftwx641004
