P. 1060

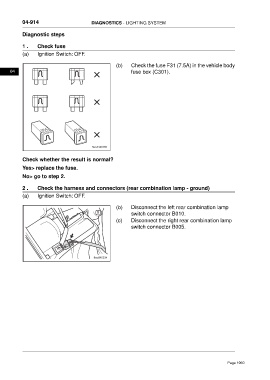

04-914 DIAGNOSTICS - LIGHTING SYSTEM
Diagnostic steps
1 . Check fuse
(a) Ignition Switch: OFF.
(b) Check the fuse F31 (7.5A) in the vehicle body
04 fuse box (C301).
Check whether the result is normal?
Yes> replace the fuse.
No> go to step 2.
2 . Check the harness and connectors (rear combination lamp - ground)
(a) Ignition Switch: OFF.
(b) Disconnect the left rear combination lamp
switch connector B010.
(c) Disconnect the right rear combination lamp
switch connector B005.
