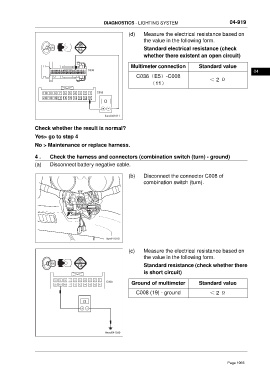

DIAGNOSTICS - LIGHTING SYSTEM 04-919

(d) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)

Multimeter connection Standard value
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 C036 04
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
C036（E5）-C008 ＜ 2 Ω
（11）

10 9 8 7 6 5 4 3 2 1 C008
20 19 18 17 16 15 14 13 12 11

ftwxd041011

Check whether the result is normal?
Yes> go to step 4
No > Maintenance or replace harness.

4 . Check the harness and connectors (combination switch (turn) - ground)
(a) Disconnect battery negative cable.

(b) Disconnect the connector C008 of
combination switch (turn).

ftwx641019

(c) Measure the electrical resistance based on
the value in the following form.
Standard resistance (check whether there
is short circuit)

C008
Ground of multimeter Standard value
C008 (19) - ground ＜ 2 Ω

ftwxd041390
