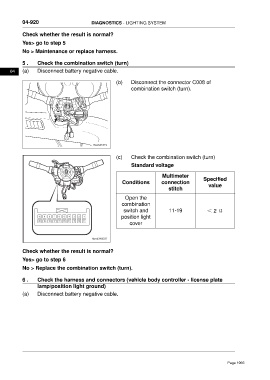

Page 1066 - Foton Workshop Manual - Tunland (AT)

04-920 DIAGNOSTICS - LIGHTING SYSTEM

Check whether the result is normal?

Yes> go to step 5
No > Maintenance or replace harness.

5 . Check the combination switch (turn)

04 (a) Disconnect battery negative cable.

(b) Disconnect the connector C008 of
combination switch (turn).

ftwx641019

(c) Check the combination switch (turn)
Standard voltage

Multimeter
Conditions connection Specified
value
stitch
Open the
combination
switch and 11-19 ＜ 2 Ω
position light
cover

Check whether the result is normal?

Yes> go to step 6
No > Replace the combination switch (turn).

6 . Check the harness and connectors (vehicle body controller - license plate
lamp/position light ground)
(a) Disconnect battery negative cable.
