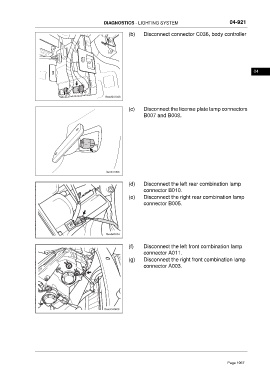

DIAGNOSTICS - LIGHTING SYSTEM 04-921
(b) Disconnect connector C036, body controller
04
ftwxd041026
(c) Disconnect the license plate lamp connectors
B007 and B008.
ftwx641006
(d) Disconnect the left rear combination lamp
connector B010.
(e) Disconnect the right rear combination lamp
connector B005.
(f) Disconnect the left front combination lamp
connector A011.
(g) Disconnect the right front combination lamp
connector A003.
