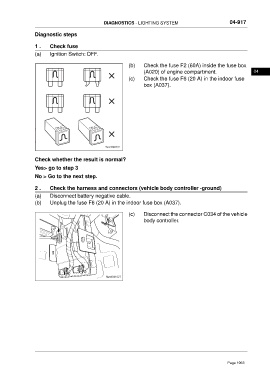

DIAGNOSTICS - LIGHTING SYSTEM 04-917

Diagnostic steps

1 . Check fuse

(a) Ignition Switch: OFF.

(b) Check the fuse F2 (60A) inside the fuse box
(A020) of engine compartment. 04
(c) Check the fuse F6 (20 A) in the indoor fuse
box (A037).

Check whether the result is normal?

Yes> go to step 3
No > Go to the next step.

2 . Check the harness and connectors (vehicle body controller -ground)
(a) Disconnect battery negative cable.
(b) Unplug the fuse F6 (20 A) in the indoor fuse box (A037).

(c) Disconnect the connector C034 of the vehicle
body controller.

ftwxd041027
