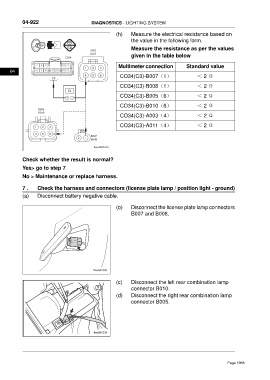

04-922 DIAGNOSTICS - LIGHTING SYSTEM
(h) Measure the electrical resistance based on
the value in the following form.
Measure the resistance as per the values
A003
A011
C034 given in the table below
Multimeter connection Standard value
04
CO34(C3)-B007（1） ＜ 2 Ω
CO34(C3)-B008（1） ＜ 2 Ω
CO34(C3)-B005（6） ＜ 2 Ω
CO34(C3)-B010（6） ＜ 2 Ω
B005
B010
CO34(C3)-A003（4） ＜ 2 Ω
CO34(C3)-A011（4） ＜ 2 Ω
B007
B008
ftwxd041414
Check whether the result is normal?
Yes> go to step 7
No > Maintenance or replace harness.
7 . Check the harness and connectors (license plate lamp / position light - ground)
(a) Disconnect battery negative cable.
(b) Disconnect the license plate lamp connectors
B007 and B008.
ftwx641006
(c) Disconnect the left rear combination lamp
connector B010.
(d) Disconnect the right rear combination lamp
connector B005.
