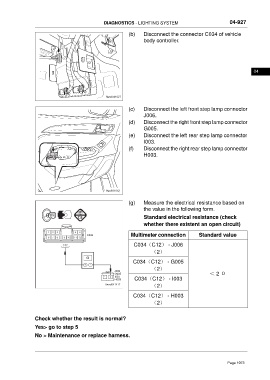

DIAGNOSTICS - LIGHTING SYSTEM 04-927

(b) Disconnect the connector C034 of vehicle
body controller.

04

ftwxd041027

(c) Disconnect the left front step lamp connector
J006.
(d) Disconnect the right front step lamp connector
G005.
(e) Disconnect the left rear step lamp connector
I003.
(f) Disconnect the right rear step lamp connector
H003.

ftwx881012

(g) Measure the electrical resistance based on
the value in the following form.

Standard electrical resistance (check
whether there existent an open circuit)

C034 Multimeter connection Standard value

C034（C12） - J006
（2）

C034（C12） - G005
（2）
J006
G005 ＜ 2 Ω
I003
H003 C034（C12） - I003
ftwxd041417 （2）

C034（C12） - H003
（2）

Check whether the result is normal?

Yes> go to step 5
No > Maintenance or replace harness.
