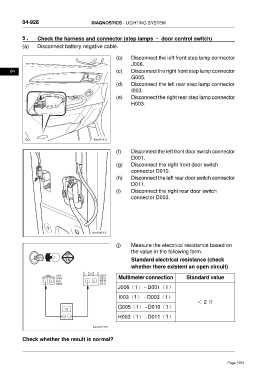

04-928 DIAGNOSTICS - LIGHTING SYSTEM

5 . Check the harness and connector (step lamps – door control switch)
(a) Disconnect battery negative cable.

(b) Disconnect the left front step lamp connector
J006.
04 (c) Disconnect the right front step lamp connector
G005.
(d) Disconnect the left rear step lamp connector
I003.
(e) Disconnect the right rear step lamp connector
H003.

ftwx881012

(f) Disconnect the left front door switch connector
D001.
(g) Disconnect the right front door switch
connector D010.
(h) Disconnect the left rear door switch connector
D011.
(i) Disconnect the right rear door switch
connector D003.

(j) Measure the electrical resistance based on
the value in the following form.

Standard electrical resistance (check
whether there existent an open circuit)
J006 D001
G005 D003 Multimeter connection Standard value
I003 D010
H003 D011
J006（1） - D001（1）
I003（1） - D003（1）
＜ 2 Ω
G005（1） - D010（1）

H003（1） - D011（1）

ftwxd041418

Check whether the result is normal?
