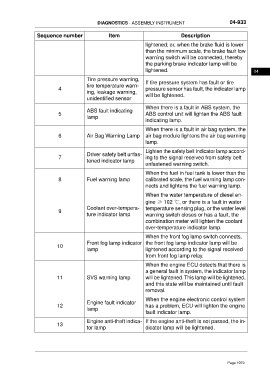

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-933

Sequence number Item Description
lightened; or, when the brake fluid is lower
than the minimum scale, the brake fault low
warning switch will be connected, thereby
the parking brake indicator lamp will be
lightened. 04

Tire pressure warning,
If tire pressure system has fault or tire
tire temperature warn-
4 pressure sensor has fault, the indicator lamp
ing, leakage warning,
will be lightened.
unidentified sensor
When there is a fault in ABS system, the
ABS fault indicating
5 ABS control unit will lighten the ABS fault
lamp
indicating lamp.
When there is a fault in air bag system, the
6 Air Bag Warning Lamp air bag module lightens the air bag warning
lamp.
Lighten the safety belt indicator lamp accord-
Driver safety belt unfas-
7 ing to the signal received from safety belt
tened indicator lamp
unfastened warning switch.
When the fuel in fuel tank is lower than the
8 Fuel warning lamp calibrated scale, the fuel warning lamp con-
nects and lightens the fuel warning lamp.
When the water temperature of diesel en-
gine ≥ 102 ℃, or there is a fault in water
Coolant over-tempera- temperature sensing plug, or the water level
9
ture indicator lamp warning switch closes or has a fault, the
combination meter will lighten the coolant
over-temperature indicator lamp.
When the front fog lamp switch connects,
Front fog lamp indicator the front fog lamp indicator lamp will be
10
lamp lightened according to the signal received
from front fog lamp relay.
When the engine ECU detects that there is
a general fault in system, the indicator lamp
11 SVS warning lamp will be lightened.This lamp will be lightened,
and this state will be maintained until fault
removal.

When the engine electronic control system
Engine fault indicator
12 has a problem, ECU will lighten the engine
lamp
fault indicator lamp.
Engine anti-theft indica- If the engine anti-theft is not passed, the in-
13
tor lamp dicator lamp will be lightened.

Page 1079
