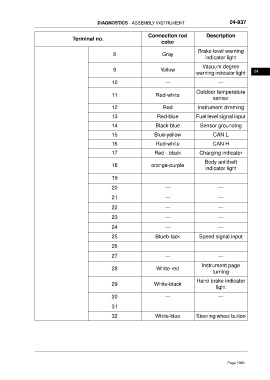

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-937

Connection rod Description
Terminal no.
color
Brake level warning
8 Gray
indicator light
Vacuum degree
9 Yellow
warning indicator light 04

10 — —
Outdoor temperature
11 Red-white
sensor

12 Red Instrument dimming
13 Red-blue Fuel level signal input

14 Black-blue Sensor grounding

15 Blue-yellow CAN L
16 Red-white CAN H

17 Red - black Charging indicator
Body antitheft
18 orange-purple
indicator light

19 — —
20 — —

21 — —

22 — —

23 — —

24 — —
25 Blueb-lack Speed signal input

26 — —

27 — —
Instrument page
28 White-red
turning

Hand brake indicator
29 White-black
light
30 — —

31 — —

32 White-blue Steering wheel button

Page 1083
