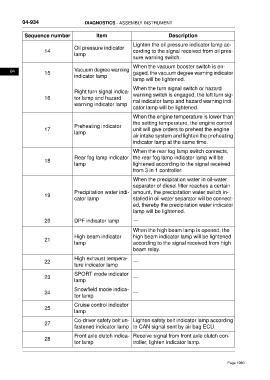

04-934 DIAGNOSTICS - ASSEMBLY INSTRUMENT

Sequence number Item Description
Lighten the oil pressure indicator lamp ac-
Oil pressure indicator
14 cording to the signal received from oil pres-
lamp
sure warning switch.
When the vacuum booster switch is en-
04 Vacuum degree warning
15 gaged, the vacuum degree warning indicator
indicator lamp
lamp will be lightened.
When the turn signal switch or hazard
Right turn signal indica-
warning switch is engaged, the left turn sig-
16 tor lamp and hazard
nal indicator lamp and hazard warning indi-
warning indicator lamp
cator lamp will be lightened.
When the engine temperature is lower than
the setting temperature, the engine control
Preheating indicator
17 unit will give orders to preheat the engine
lamp
air intake system and lighten the preheating
indicator lamp at the same time.
When the rear fog lamp switch connects,
Rear fog lamp indicator the rear fog lamp indicator lamp will be
18
lamp lightened according to the signal received
from 3 in 1 controller.
When the precipitation water in oil-water
separator of diesel filter reaches a certain
Precipitation water indi- amount, the precipitation water switch in-
19
cator lamp stalled in oil-water separator will be connect-
ed, thereby the precipitation water indicator
lamp will be lightened.

20 DPF indicator lamp —
When the high beam lamp is opened, the
High beam indicator high beam indicator lamp will be lightened
21
lamp according to the signal received from high
beam relay.
High exhaust tempera-
22 —
ture indicator lamp

SPORT mode indicator
23 —
lamp
Snowfield mode indica-
24 —
tor lamp

Cruise control indicator
25 —
lamp
Co-driver safety belt un- Lighten safety belt indicator lamp according
27
fastened indicator lamp to CAN signal sent by air bag ECU.
Front axle clutch indica- Receive signal from front axle clutch con-
28
tor lamp troller, lighten indicator lamp.
