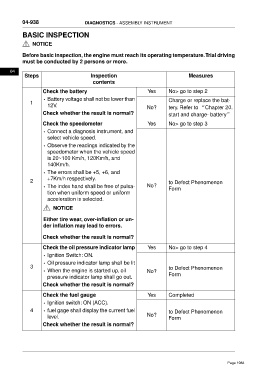

Page 1084 - Foton Workshop Manual - Tunland (AT)

04-938 DIAGNOSTICS - ASSEMBLY INSTRUMENT

BASIC INSPECTION

NOTICE

Before basic inspection, the engine must reach its operating temperature.Trial driving
must be conducted by 2 persons or more.

04
Steps Inspection Measures
contents
Check the battery Yes No> go to step 2

• Battery voltage shall not be lower than Charge or replace the bat-
1
12V.
No? tery. Refer to “Chapter 20.
Check whether the result is normal? start and charge- battery”
Check the speedometer Yes No> go to step 3

• Connect a diagnosis instrument, and
select vehicle speed.
• Observe the readings indicated by the
speedometer when the vehicle speed
is 20~100 Km/h, 120Km/h, and
140Km/h.
• The errors shall be +5, +6, and
+7Km/h respectively.
2 to Defect Phenomenon
• The index hand shall be free of pulsa- No?
Form
tion when uniform speed or uniform
acceleration is selected.
NOTICE

Either tire wear, over-inflation or un-
der inflation may lead to errors.

Check whether the result is normal?

Check the oil pressure indicator lamp Yes No> go to step 4

• Ignition Switch: ON.
• Oil pressure indicator lamp shall be lit
3 to Defect Phenomenon
• When the engine is started up, oil No?
pressure indicator lamp shall go out. Form
Check whether the result is normal?

Check the fuel gauge Yes Completed
• Ignition switch: ON (ACC).
4 • fuel gage shall display the current fuel to Defect Phenomenon
level. No? Form
Check whether the result is normal?
