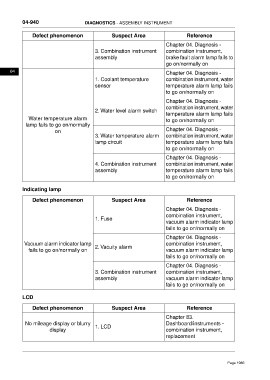

04-940 DIAGNOSTICS - ASSEMBLY INSTRUMENT

Defect phenomenon Suspect Area Reference
Chapter 04. Diagnosis -
3. Combination instrument combination instrument,
assembly brake fault alarm lamp fails to
go on/normally on
04
Chapter 04. Diagnosis -
1. Coolant temperature combination instrument, water
sensor temperature alarm lamp fails
to go on/normally on

Chapter 04. Diagnosis -
combination instrument, water
2. Water level alarm switch
temperature alarm lamp fails
Water temperature alarm to go on/normally on
lamp fails to go on/normally
on Chapter 04. Diagnosis -
3. Water temperature alarm combination instrument, water
lamp circuit temperature alarm lamp fails
to go on/normally on

Chapter 04. Diagnosis -
4. Combination instrument combination instrument, water
assembly temperature alarm lamp fails
to go on/normally on

Indicating lamp

Defect phenomenon Suspect Area Reference
Chapter 04. Diagnosis -
combination instrument,
1. Fuse
vacuum alarm indicator lamp
fails to go on/normally on
Chapter 04. Diagnosis -
Vacuum alarm indicator lamp combination instrument,
2. Vacuity alarm
fails to go on/normally on vacuum alarm indicator lamp
fails to go on/normally on
Chapter 04. Diagnosis -
3. Combination instrument combination instrument,
assembly vacuum alarm indicator lamp
fails to go on/normally on

LCD

Defect phenomenon Suspect Area Reference

Chapter 83.
No mileage display or blurry Dashboard/instruments -
1. LCD
display combination instrument,
replacement
