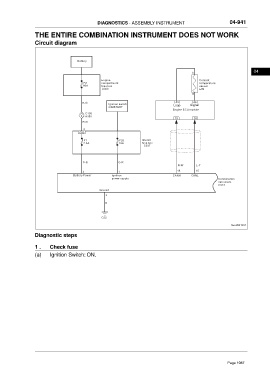

DIAGNOSTICS - ASSEMBLY INSTRUMENT 04-941
THE ENTIRE COMBINATION INSTRUMENT DOES NOT WORK
Circuit diagram
Battery
A 04
Engine Coolant
F2 compartment temperature
60A fuse box sensor
A020 E09
B
R-G Ignition switch 43 46
ON/START Loop Signal
Engine ECU module
C105
4 A306
15 16
R-G
2
C65
F7 F26 Interior
7.5A 10A fuse box
C037
P-B O-R
R-W L-Y
3 1 16 15
Battery Power Ignition CANH CANL
power supply Combination
nstrument
C013
Ground
2
B
C22
ftwxd041291
Diagnostic steps
1 . Check fuse
(a) Ignition Switch: ON.
