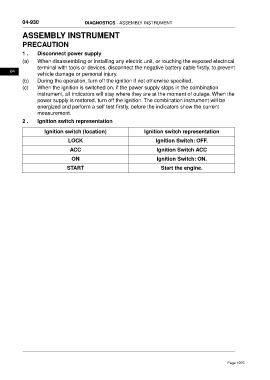

04-930 DIAGNOSTICS - ASSEMBLY INSTRUMENT

ASSEMBLY INSTRUMENT

PRECAUTION
1 . Disconnect power supply

(a) When disassembling or installing any electric unit, or touching the exposed electrical
terminal with tools or devices, disconnect the negative battery cable firstly, to prevent
04
vehicle damage or personal injury.
(b) During the operation, turn off the ignition if not otherwise specified.
(c) When the ignition is switched on, if the power supply stops in the combination
instrument, all indicators will stay where they are at the moment of outage. When the
power supply is restored, turn off the ignition. The combination instrument will be
energized and perform a self test firstly, before the indicators show the current
measurement.

2 . Ignition switch representation

Ignition switch (location) Ignition switch representation
LOCK Ignition Switch: OFF.

ACC Ignition Switch ACC
ON Ignition Switch: ON.

START Start the engine.
